Product Overview

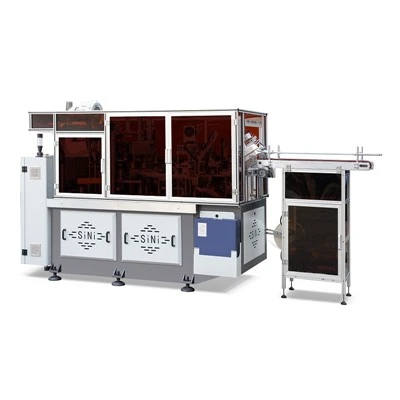

The Energy-Saving Double PE Paper Cup Machine is an industrial forming system designed for continuous production of double-side PE coated paper cups used in hot and cold beverage applications.
The machine integrates a segmented thermal control system and synchronized mechanical transmission architecture. Heating output is distributed according to forming stages rather than constant full-load operation, allowing stable production while optimizing energy utilization during long-cycle manufacturing.
For large-scale paper cup production environments, the system supports consistent sealing performance, stable forming accuracy, and controlled operating cost across multi-shift production schedules.
Key Features & Technological Advantages
Dual-Station Ultrasonic Side Sealing System
High-frequency ultrasonic bonding technology is applied to achieve instant sealing of double PE coated paper. This ensures strong seam integrity, water-tight performance, and stable output quality even under continuous high-speed operation.
Open-Cam Precision Drive System
The machine adopts a heavy-duty open-cam transmission structure with an integrated oil circulation lubrication system.
Compared with chain-driven systems, it provides
• Improved transmission stability
• Reduced mechanical wear
• Higher long-term timing accuracy
• Lower maintenance requirements
Servo-Controlled Paper Feeding System
A servo-driven feeding system precisely controls web advancement during punching and forming processes. This minimizes material waste and improves raw material utilization efficiency.
Technical Specifications
|
Parameter |
Specification |
|
Production Speed |
70 - 90 cups / minute |
|
Paper Stock Compatibility |
150 - 350 g/m² (Single or Double PE coated) |
|
Cup Volume Capabilities |
2 oz - 16 oz (Via modular tooling changeover) |
|
Total Rated Power |
11 kW |
|
Electrical Framework |
380V / 220V, 50Hz / 60Hz (Configured to regional industrial grid) |
|
Net Structural Weight |
Approximately 2,500 kg |
|
Overall Footprint Dimension |
2,600 mm × 1,350 mm × 1,800 mm |
Machine Structure
|
Servo Paper Feeding System |
Ensures stable and precise material feeding |
|
Multi-Zone Heating System |
Independent temperature control for forming sections |
|
Rotary Forming Platform |
Multi-station synchronized operation |
|
Bottom Forming Unit |
Heat-assisted sealing and shaping |
|
Knurling Unit |
Reinforces bottom structure for leakage resistance |
|
Precision Transmission System |
Ensures synchronized mechanical movement |
|
Automatic Stacking System |
Continuous output and collection |
Working Process Overview
The machine operates on a rigid cast-iron frame structure to ensure vibration stability and long-term precision.
Blank Feeding & Side Sealing: Paper blanks are automatically fed and sealed using ultrasonic bonding.
Bottom Forming: Bottom discs are punched and inserted with controlled alignment.
Localized Heating & Knurling: Targeted heating softens PE layers, followed by mechanical knurling for sealing reinforcement.
Top Curling & Output: Cup rims are shaped through multi-stage curling before automatic stacking and discharge.
Industrial Applications
This versatile, high-stability equipment supports the global food packaging supply chain by manufacturing a wide range of secure commercial containers:
Condensation-Resistant Cold Cups: Designed for iced beverages, sodas, and ice cream tubs, preventing the outer paper walls from softening in humid or freezing environments.
Thermal-Insulated Hot Cups: Engineered to withstand high-temperature liquids without structural breakdown or aromatic interference.
High-Fat Dairy & Yogurt Tubs: Delivers tight, uniform seam integration to meet strict liquid-retention requirements for dairy packaging.
Custom Configuration Options
Cup diameter and height adjustment range
Heating zone configuration optimization
Servo system performance upgrade options
Output speed adaptation for production planning
Branding and printing compatibility integration
Electrical specification adaptation for regional operation
Production Quality Control System
Each machine is verified through structured inspection stages:
Precision alignment is applied during assembly to ensure stable operation across extended production cycles.
Frequently Asked Questions
Q: How does the machine achieve up to 20% energy savings?
A: Energy reduction is driven by our segmented, zoned heating elements combined with an optimized mechanical drive. Instead of utilizing energy-intensive hot-air arrays, heat is applied locally and precisely at the exact sealing zones, lowering overall electrical draw.
Q: Can a single machine manufacture multiple cup sizes?
A: Yes. The machine features a modular design framework. By exchanging the forming mandrels, knurling heads, and curling dies, a single machine can be configured to produce cup volumes ranging from 2 oz up to 16 oz to match your specific engineering drawings.
Q: What are the maintenance advantages of the open-cam system?
A: The open-cam mechanism runs within a continuous oil-recirculation loop that cools and lubricates all internal load-bearing parts automatically. This design eliminates manual greasing routines, reduces operational downtime, and protects food-grade paper from lubricant exposure.
