This machine is a widely used packing machine made by our scientific research personnel absorbing user's advice and combing the real conditions at home, designed and added to a set of sender as the traction power to solve the problem of the ultrathin material and overweight of the packed object.
This machine is suitable for packing paper cups.
Features：
Programmable control: PLC programmable controller is used to program the whole machine.
Man-machine interface: the speed of the main unit, the length of the set bag, the compensation amount will be displayed on the touch screen.
Two sets of automatic temperature control: each heating part is automatically controlled by a temperature controller to improve the sealing quality.
|
Specification |
|
|
Capacity |
Maximum 20Bags/min |
|
Packing dimensions |
L100-1000mm, W30-320mm, H30-110mm |
|
Packaging Material |
OPP/CPP |
|
Packaging film thickness |
30-80um |
|
Total power |
5kw |
|
Power source |
380V 3-phase, 50HZ |
|
Machine size |
2000x1060x1580mm |
|
Weight |
1000kg |

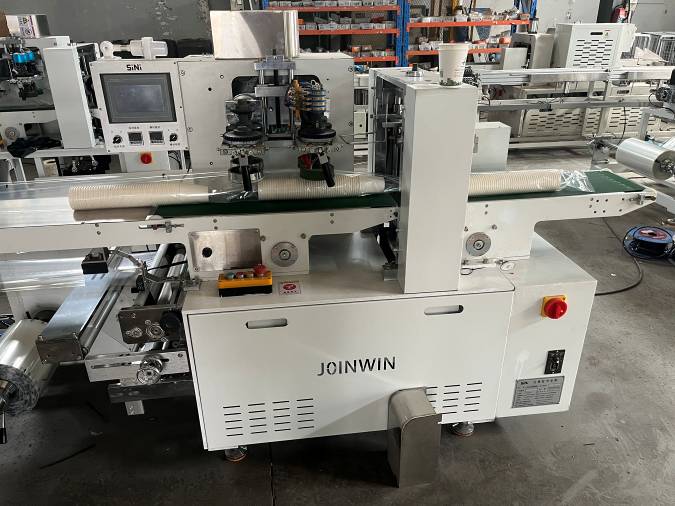

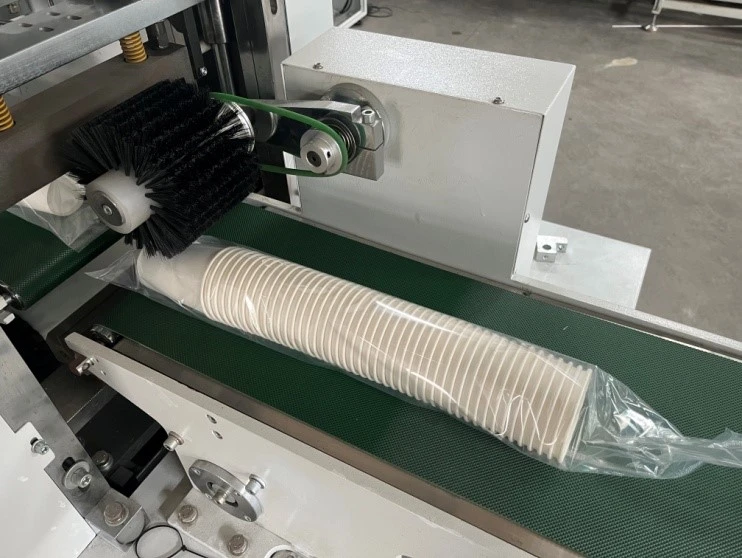

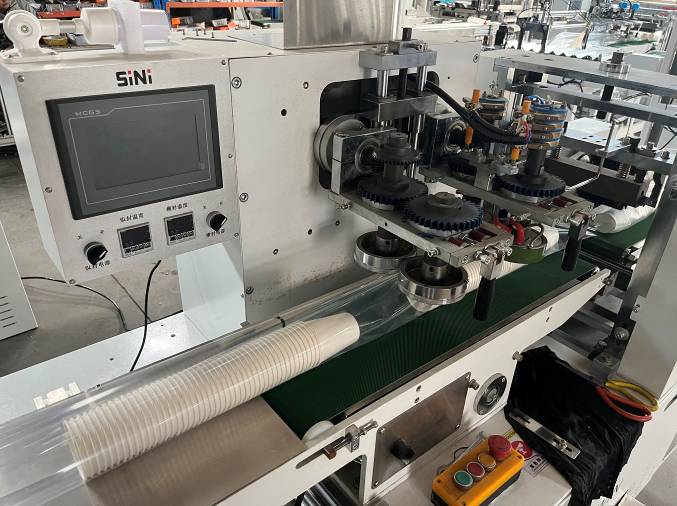

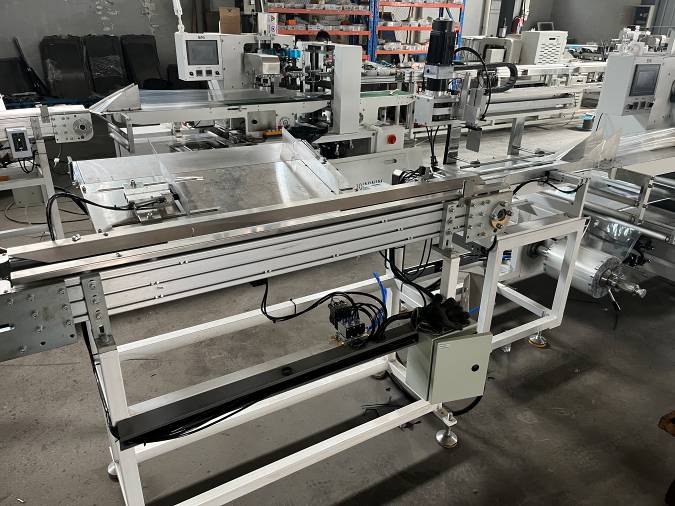

Machine detail
|
|
|
|
|
|
