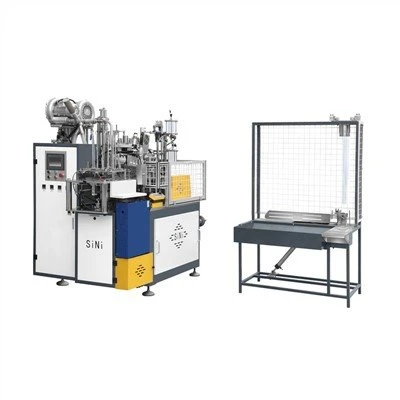

Medium Speed Intelligent Paper Cup Making Machine

This machine integrates full-process automated forming including paper feeding, side sealing, bottom forming, knurling reinforcement, rim curling, and automatic stacking within a synchronized mechanical architecture.

The control system is built on PLC-based timing coordination, ensuring consistent synchronization between stations during continuous operation. This structure reduces mechanical deviation and maintains stable cup geometry over extended production cycles.

The system supports single and double PE coated paper materials, enabling flexible adaptation to different packaging applications in beverage and food service production lines.

PLC Synchronized Control System
All forming stations operate under unified timing coordination, ensuring stable motion alignment and consistent forming performance during continuous production.

Medium-Speed Stable Production Design
Engineered for a stable output of 70–90 cups per minute, balancing production efficiency with long-term mechanical reliability.

Controlled Sealing System
Ultrasonic or thermal sealing options provide stable temperature and pressure control, ensuring uniform bonding strength and reliable liquid resistance.

Reinforced Bottom Forming System
Bottom heating and knurling processes improve structural strength and sealing reliability, supporting hot and cold beverage applications.

Multi-Size Production Flexibility
Adjustable tooling system supports different cup diameters and heights with reduced changeover time for varied production requirements.

Automatic Stacking Output System
Finished cups are automatically aligned, counted, and stacked to support efficient downstream packaging operations.

The machine adopts a modular design to ensure stable operation, simplified maintenance, and long-term production reliability.

Paper Feeding Module: Ensures stable and accurate sheet feeding.

Side Sealing Module: Maintains consistent sealing temperature and pressure.

Cup Forming Module: Controls cylindrical forming accuracy.

Bottom Reinforcement Module: Enhances sealing strength and leak resistance.

Rim Curling Module: Ensures uniform rim shaping and structural stability.

Stacking Output Module: Enables automatic alignment and controlled discharge

The system supports standardized production requirements for high-volume packaging supply chains.

To support different production requirements, system configurations can be adapted:

Rigorous Factory Testing: Every machine undergoes a continuous 48-hour mechanical dry-run followed by a live 10,000-cup production verification prior to dispatch.

International Certifications: Fully CE certified under European Machinery Safety Directives and fabricated strictly under ISO 9001:2015 quality management workflows for full material and component traceability.

Each machine is prepared for international transportation with protective engineering measures:
• Anti-corrosion treatment for key components
• Reinforced wooden crate packaging
• Internal shock-absorbing fixation system
• Moisture protection for electrical systems
• Full installation documentation included
