Advantages
1. The whole steel plate fuselage、interlayer paper feeding design and the style of oil poured lubrication system is Ensured the equipment long-term normal and Stable Work.
2. Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake.
3. Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately.
4. Exquisite original creation ￠490mm mould turn plate design make the equipment work load more light and the speed to be more fast.
5. Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products producing range 6oz-22oz.
Specification
Model | JBZ-22D | JBZ-22S |
Cup size | 6oz-22oz | |
Raw material | Single PE coating paper | Single and double PE coating paper |
Paper thickness | 160-280gsm | 160-300gsm |
Top mouth diameter | 60mm-90mm | |
Bottom diameter | 40mm-70mm | |
Bottom depth | 5mm-10mm | |
Height | 60mm-180mm | |
Capacity | 60-90 cups per minute | |
Main motor power | 1.5kw | |
Total power | 11.5kw | 16kw |
Energy consumption | 6-6.5 kw/hour | 7-7.5 kw/hour |
air consumption | 0.4m3/min, 0.5-0.8Mpa | |
Weight | 2200kg | |
Dimension | 1750x1350x1850mm 1220x950x2080mm | 1900x1350x2000mm 1220x950x2080mm |

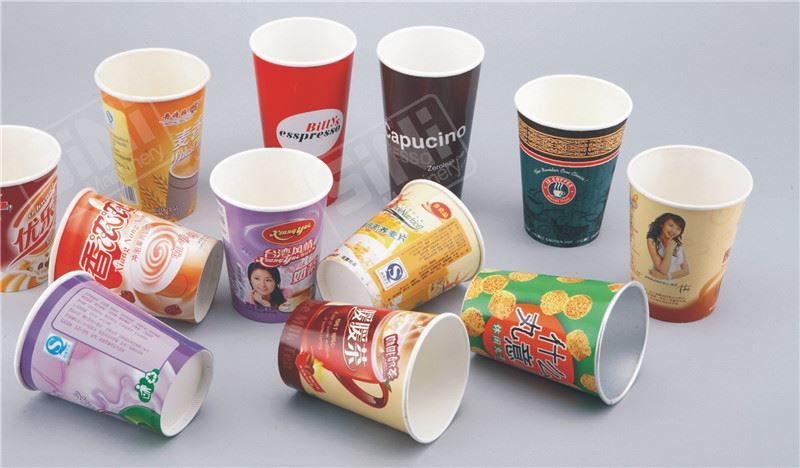

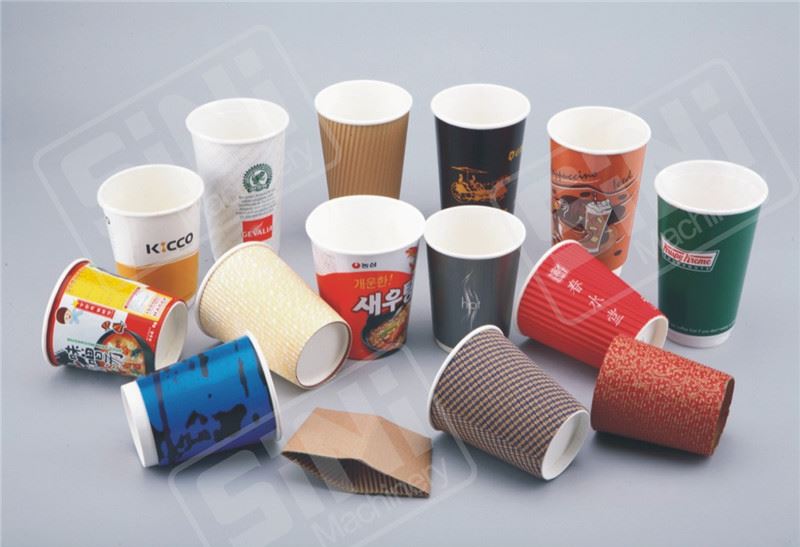

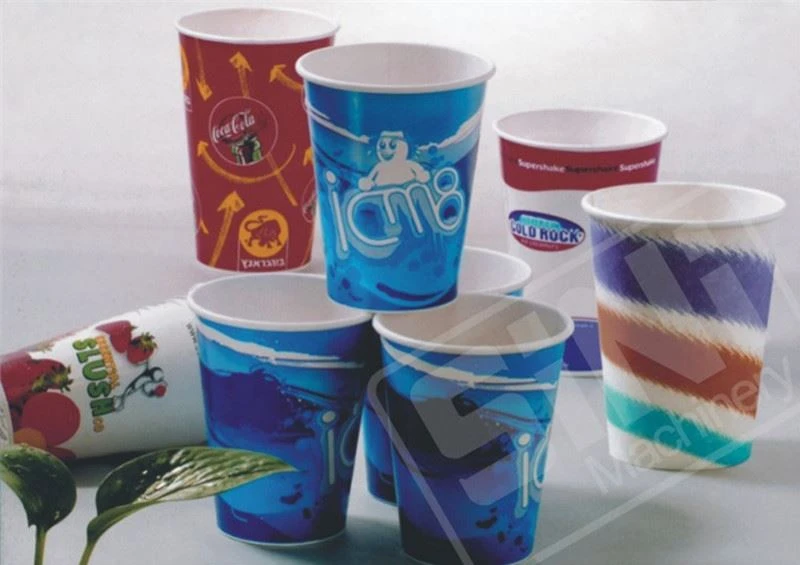

Finished Products:
